If scalability is about splitting, then systems integration is about rejoining. Generally, there are 2 main techniques for integrating distributed applications:
- Shared storage: shared repository of data and state information -> SQL/NoSQL databases.
- Messaging: disseminate data, events, and commands across the nodes of the system.

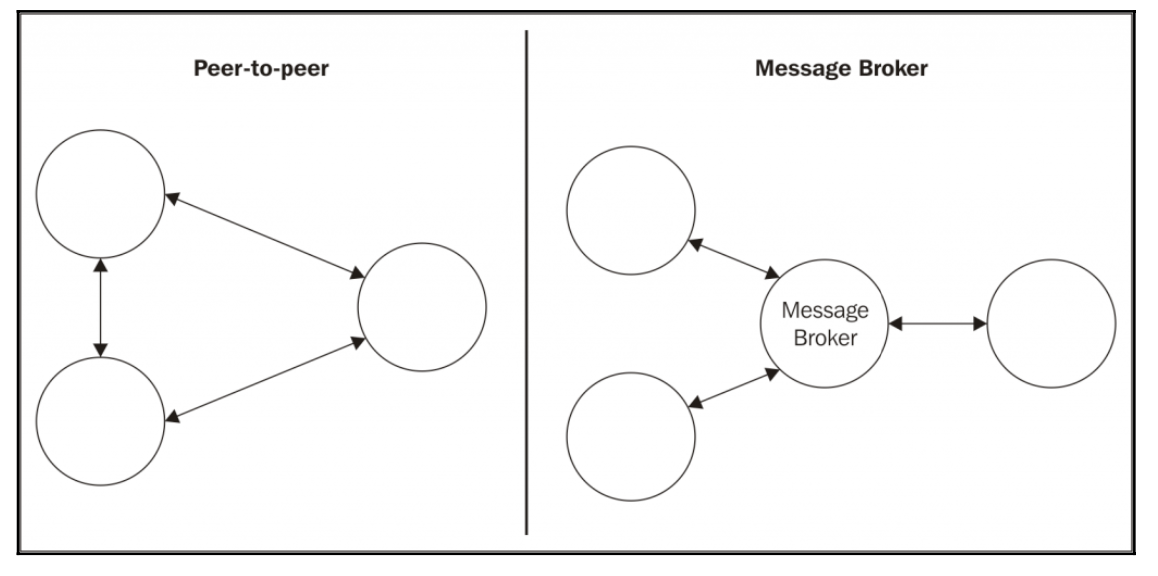

With messaging technique, we will divide into 2 approaches also:
- Peer-to-Peer (P2P).
- Message Broker.

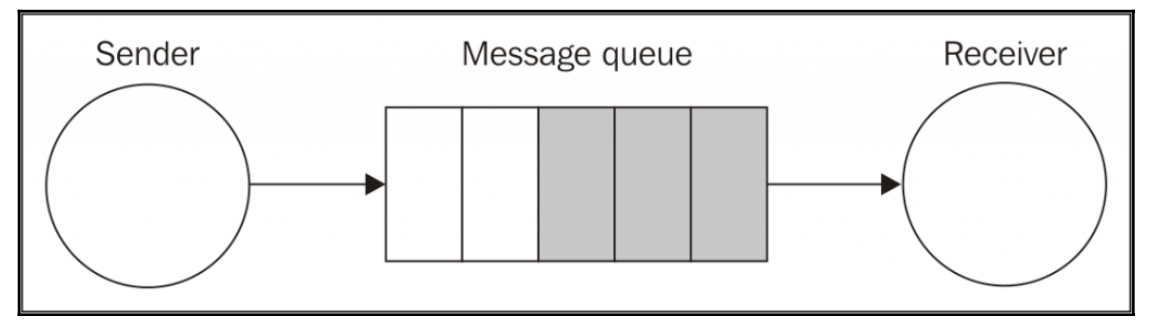

1. Message Queue
For messaging communications, it’s the same story with handling asynchronous operations in Nodejs.
With Message Queue, messages can be stored and then delivered asap or later. This is useful when the receiver is too busy or we want to guarantee the delivery.
1. P2P
Nodes (computers or devices) communicate directly with each other without the need for a centralized server. Each node can act both as a client and a server, capable of sending and receiving messages to and from other nodes in the network.
Example: socket.io, RESTful HTTP,…
2. Message Broker
Act as an intermediary component that facilitates communication between different parts of a distributed system by routing messages from producers to consumers. It acts as a centralized hub where messages are temporarily stored and then forwarded to the appropriate destination based on predefined rules or routing criteria.
Example: RabbitMQ, Apache Kafka, Redis publish/subscribe,…
Refs:
[Book] Node.js Design Patterns by Mario Casciaro
